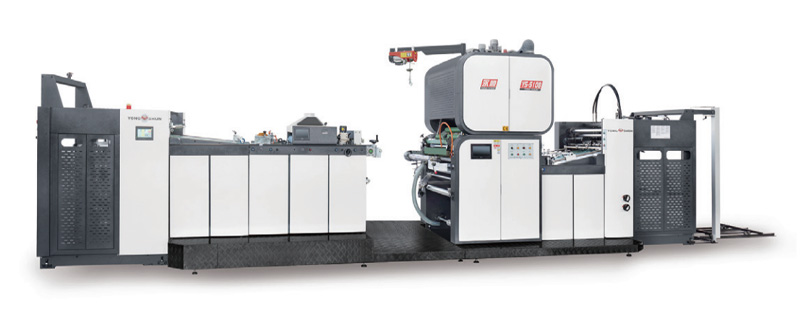

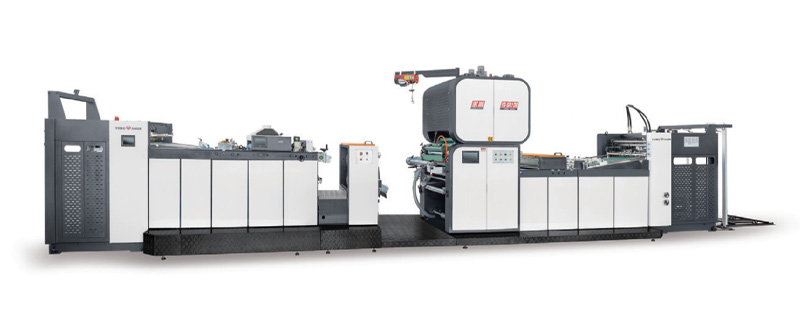

The Automatic Film Laminating Machine with Hot Knife is an advanced solution designed to provide high-quality laminating for various types of films. Featuring a hot knife cutting system, it ensures precise and clean cuts, making it ideal for materials such as OPP, PET, and PVC films.
The Film Laminating Machine offers automatic operation, streamlining production processes, enhancing efficiency, and reducing labor costs. With its fast heating capabilities and energy-saving design, it provides optimal performance while maintaining high safety standards. This laminating machine is perfect for industries requiring reliable, consistent, and precise film lamination.
| Hot cutter type | YS-SR108-S | YS-SR108-M | YS-SR108-L | YS-SR108-G | YS-SR130 |
| Chain cutter type | YS-SL108-S | YS-SL108-M | YS-SL108-L | YS-SL108-G | YS-SL130 |
| Standard type | YS-S108-S | YS-S108-M | YS-S108-L | YS-S108-G | YS-S130 |
| Speed | 20-100m/min | 20-100m/min | 20-100m/min | 20-100m/min | 20-100m/min |
| Applicable paper gram | 100-500g | 100-500g | 100-500g | 100-500g | 100-500g |
| The maximum available size | 1080×1000mm | 1080×1200mm | 1080×1450mm | 1080×1650mm | 1300×1650mm |
| The minimum available size | 300×350mm | 300×350mm | 300×350mm | 300×350mm | 300×350mm |
| Total electricity consumption | 60kw | 60kw | 60kw | 65kw | 65kw |
| Machine weight | 10000kg | 10000kg | 10500kg | 10800kg | 11500kg |
| Machine size | 11800×2370×3000mm | 11800×2370×3000mm | 12300×2370×3000mm | 13300×2370×3000mm | 13300×2590×3000mm |

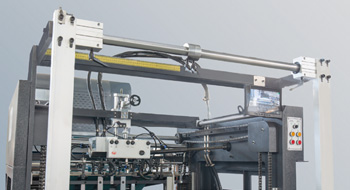

One-button start, easy to operate, and the film-hanging device can be managed by a single person.

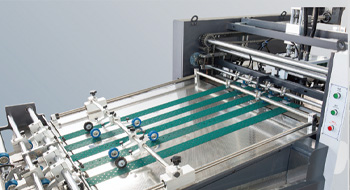

Powerful four-feed and four-suction system ensure stable paper feeding with continuous paper supply. The shaftless feeder allows for smooth paper feeding, and the servo control system provides flexible and convenient adjustments (standard configuration for 1450~1620 models). The full-page direct push type reduces labor requirements (optional).

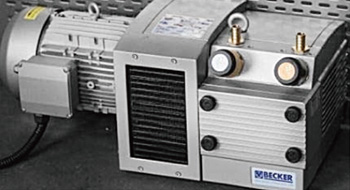

The vacuum pump is from the Baker brand.

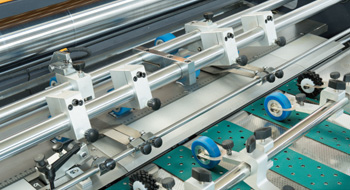

The servo motor controls the pull gauge for automatic alignment, offering simple operation and precise positioning.

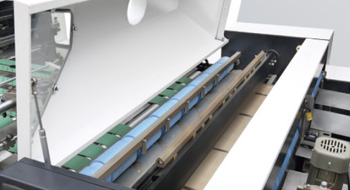

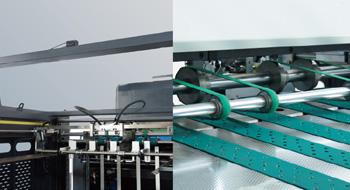

The three-sided paper flush device includes a counting function, corrugated paper output, automatic waste discharge, paper jam slowdown, and an optional automatic paper change. Additionally, it offers back flush (optional), as well as counting and label insertion functions (optional).

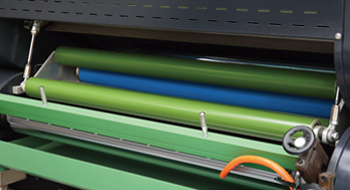

Adopt double motors drive for gluing, the accuracy can reach 3g/Square meter; Use Tefon treatment to achieve high temperature resistance, non-sticky and other effects.

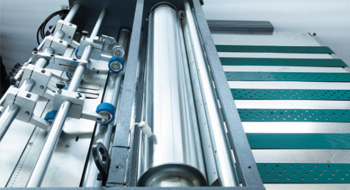

Hot knife slitting: suitable for all films, especially for PET films Aluminized film, etc.lt is characterized by fast cutting speed, precise cutting, and tail cutting. The film is small and can be smoothly entered into the next process.

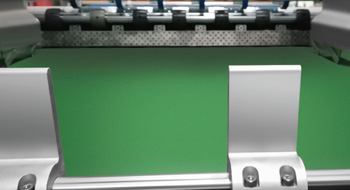

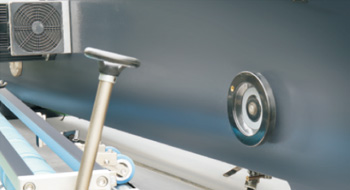

Non-adjustable negative pressure adsorption with slide rail adjustment, making it time-saving and effortless.
Chain knife slitting: for PET film slitting, there are two modes of cutting To ensure that different materials and colors of paper can be accurately cut.

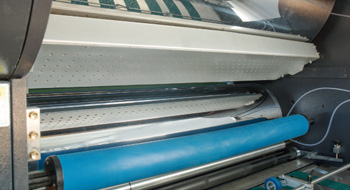

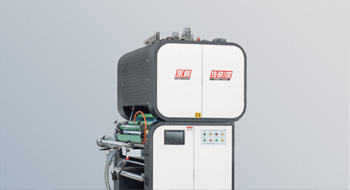

Electromagnetic heating and oil heating are now combined, with fast heating and high thermal energy utilization.
Automatic intelligent paper change, reduce workers' work, improve work effciency.
Effectively removes dust from the paper surface, enhances the film's brightness, and reduces glue consumption. A coding reserved platform is also included.

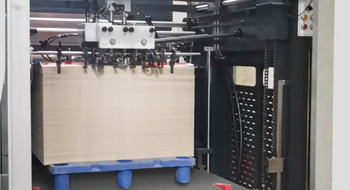

Direct push-type paper loading reduces labor requirements.

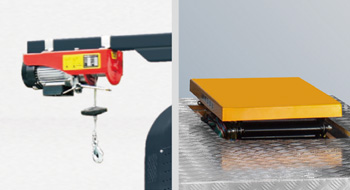

Electric hanging film and hydraulic lifting, choose one of the two.
