Faster Paper Handling Increased feeding and collection speed, handling larger paper volumes simultaneously.
Intelligent Operation One-click start and smart version change without stopping for convenience.
Enhanced Mainframe Design Larger mainframe diameter and rollers for improved stability and performance.
Energy-efficient Temperature Control Timely and thermal-fit control ensures stable temperature and energy savings.
| Chain Cutter Type | GS-L110S | GS-L110M | GS-L110L | GS-L110G | GS-L130G |
| Disc Cutter Type | GS-110S | GS-110M | GS-110L | GS-110G | GS-130G |
| Hot Knife Cutter Type | GS-R110-S | GS-R110M | GS-R110L | GS-R110G | GS-R130G |
| Mechanical Speed | 20-120m/min | 20-120m/min | 20-120m/min | 20-120m/min | 20-120m/min |
| Applicable Paper Gram | 100-500g | 100-500g | 100-500g | 100-500g | 100-500g |
| The Maximum Available Size | 1080*1000mm | 1080*1200mm | 1080*1450mm | 1080*1650mm | 1300*1650mm |
| The MInimum Avalable Size | 300*350mm | 300*350mm | 300*350mm | 300*350mm | 300*350mm |
| Total Electricity Consumption | 60kw | 60kw | 60kw | 60kw | 65kw |
| Machne Weight | 11000kg | 11000kg | 11500kg | 12000kg | 13000kg |
| Machine Size | 11750*2600*3000mm | 11750*2600*3000mm | 12000*2600*3000mm | 12500*2600*3000mm | 12500*2800*3000mm |

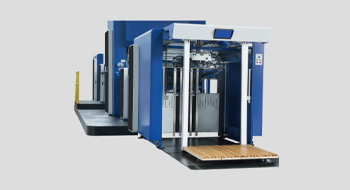

Shaftless Feida feed paper, servo control system, fexible and convenient adjustment; full-page direct push type, reducing labor; platen rising and falling over-imit protection; pre-stacking mechanism to realize non-stop feeding; Higher ground clearance and higher stacking height, each board stack can stack more papers, adapting to the machine speed, so that the operator has enough time to preload the paper or directly feed the whole board stack.

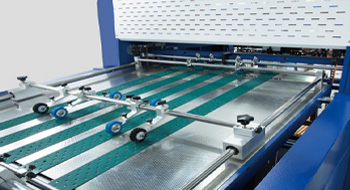

Non-adjustable negative pressure adsorption, slide rail adjustment, saving time and effort.
The servo motor controls the pull gauge to automatically align, simple operation and precise positioning.
Effectively remove dust on the surface of the paper, increase the brightness of the film, Save glue amount.
One-key start, simple operation, hanging film device, can be operated by one person.

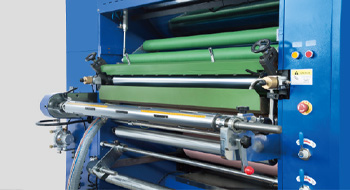

Adopt double motors drive for gluing, the accuracy can reach 3g/Square meter; Use Tefon treatment to achieve high temperature resistance, non-sticky and other effects.

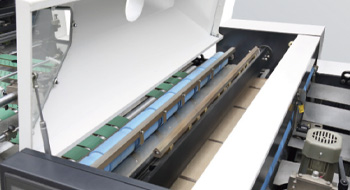

Three-sided paper aligning device, counting function, corrugated paper output, automatic waste discharge, paper jam deceleration, automatic paper change, back-aligned counting function(optional)
Hot knife slitting: suitable for all films, especially for PET hlms, aluminized films, etc.lt is characterized by fast cutting speed, precise cutting, and small tail film, which can smoothly enter the next process.
Equipped with a membrane replacement function.
Oven: vertical oven with large size Φ900 drying roller and hot air direct blowing system to achieve maximum energy saving. The main machine is composed of a heating roller (Φ400) and a pressure rubber roller (Φ280); the hot pressing roller adopts electromagnetic heating, the heat transfer oil heating combined with the inteligent constant temperature roller has a stable temperature, which is 50% faster than the traditional heating method. The temperature difference of the heating roller surface is only ±1℃, which completely eliminates the uneven temperature of the traditional oil heating surface.
Constant temperature roller: full protective device to prevent debris from talling into. The high-precision intelligent constant temperature roller ensures that the temperature difference of the roller surface is ±1℃ under high-speed operation.
