Automatic Three Heads Varnish Coating Machine

Basic Introduction:

Easy to operate and inteligent: easy to control
Energy saving: UV intelligent power control
High safety factor: high voltage protection, external cover design

GET A INQUIRY

DOWNLOAD FILE

Description Parameters Component Introduction Recommended Products

Description

This Automatic Varnishing Machine belongs to the oil (UV) glazing equipment on the surface of paper products. lt is suitable for paper oil glazing process of various thick and thin papers. Various paper prints processed by this Automatic Three Heads Varnish Coating Machine are not only the surface The gloss is greatly improved, and the surface of the p-rinted product is resistant to Moisture and wear resistance. Widely used in various cards, The surface treatment of the packaging carton is the improvement of the printing house The ideal device for print quality.

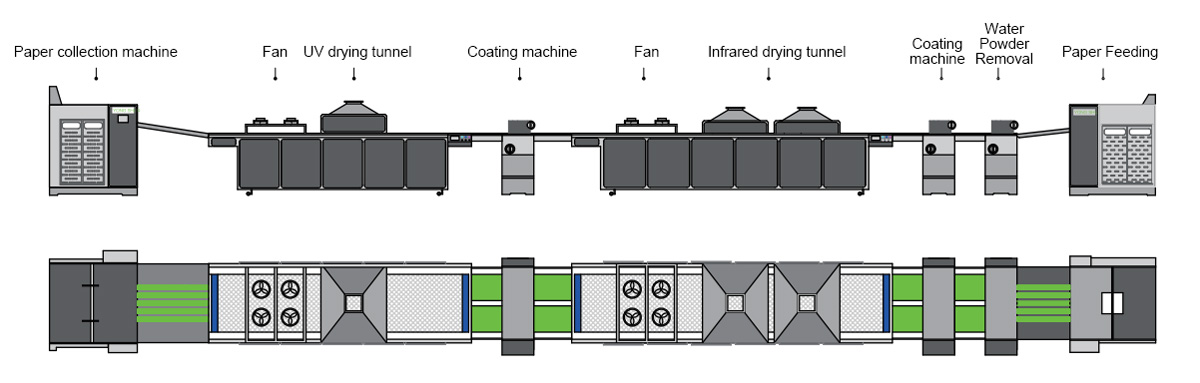

Schematic Diagram

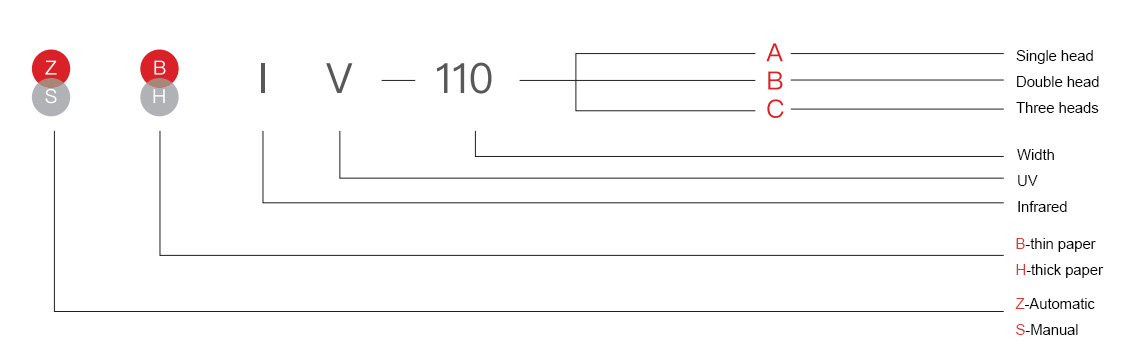

Model Breakdown

Applications for Laminating Solutions

Parameters

Model/thick paper	ZHIV-110C	ZHIV-130C	ZHIV-150C
Model/thin paper	ZBIV-110C	ZBIV-130C	ZBIV-150C
Maximum paper size	1100*1100mm	1300*1650mm	1500*1650mm
Minimum paper size	350*350mm	350*350mm	350*350mm
Paper thickness for thick paper machine	200-600g/m²	200-600g/m²	200-600g/m²
Paper thickness for thin paper machine	100-600g/m²	100-600g/m²	100-600g/m²
Mechanical speed	10-100m/min	10-100m/min	10-100m/min
External dimensions	2150023002000mm	2300025002000mm	2300027002000mm
Total power consumption	56KW	58KW	58KW

Component Introduction

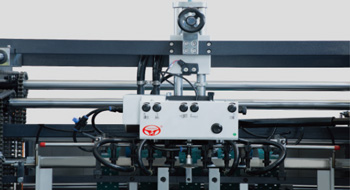

Paper Feeding

Direct push type paper loading table, reduce labor force; strong four-feed and foursuc tion,Stable paper feeding; double-sheet stop device.

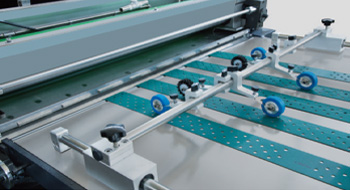

Conveyor

Non-adjustable negative pressure adsorption, slide rail adjustment, saving time and effort.

Water Powder Removal

Effectively remove dust on the surface of the paper, increase the brightness of thefilm, and save the amount of glue.

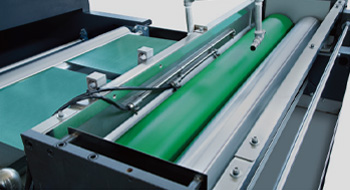

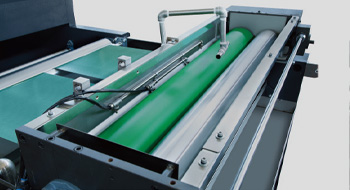

Infrared Coating

The coating is smooth, the cot roll paper is stopped, the roll paper is moved inching, and the cot roll is easy to disassemble and assemble. Splash-proof protection, oil circu-lation system, and easy cleaning of rubber rollers.

UV Coating

The coating is smooth, the cot roll paper is stopped, the roll paper is moved inching, and the cot roll is easy to disassemble and assemble. Splash-proof protection, oil circu-ation system, and easy cleaning of rubber rollers.

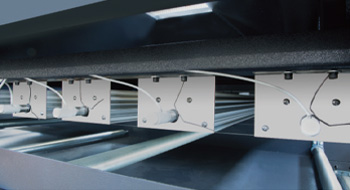

Infrared Oven

Each lamp is equipped with a lampshade to save electricity.

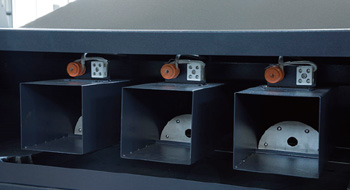

UV Oven

UV lamp shade cooling air extraction device to protect the life of the lamp.

UV Light Source

UV light source, safety protection, 30% energy saving, intelligent control.

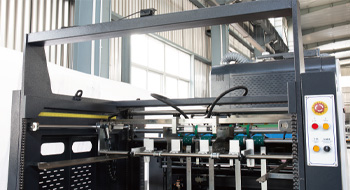

Automatic Receiving

Three-sided paper aligning device, counting function, corrugated paper output, automatic waste discharge, paper jam deceleration, non-stop paper change, random paper separation function, and anti-presser foot function.
