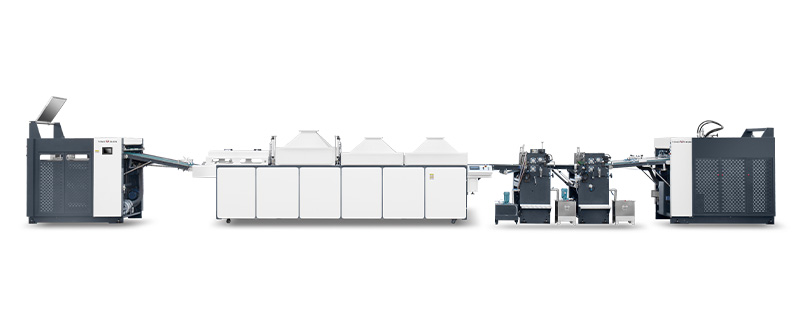

Double Drying Channels Automatic Varnishing Machine

Basic Introduction:

Increased Productivity: The double drying channels allow for faster drying times, enabling higher production volumes.
Improved Quality: The precise varnish application and thorough drying process result in a high - quality finish with fewer defects.
Easy to operate and inteligent: easy to control
Energy saving: UV intelligent power control

GET A INQUIRY

DOWNLOAD FILE

Description Parameters Component Introduction Recommended Products

Description

This Double Drying Channels Automatic Varnishing Machine belongs to the oil (UV) glazing equipment on the surface of paper products. lt is suitable for paper oil glazing process of various thick and thin papers. Various paper prints processed by this machine are not only the surface The gloss is greatly improved, and the surface of the p-rinted product is resistant to Moisture and wear resistance. Widely used in various cards, The surface treatment of the packaging carton is the improvement of the printing house The ideal device for print quality.

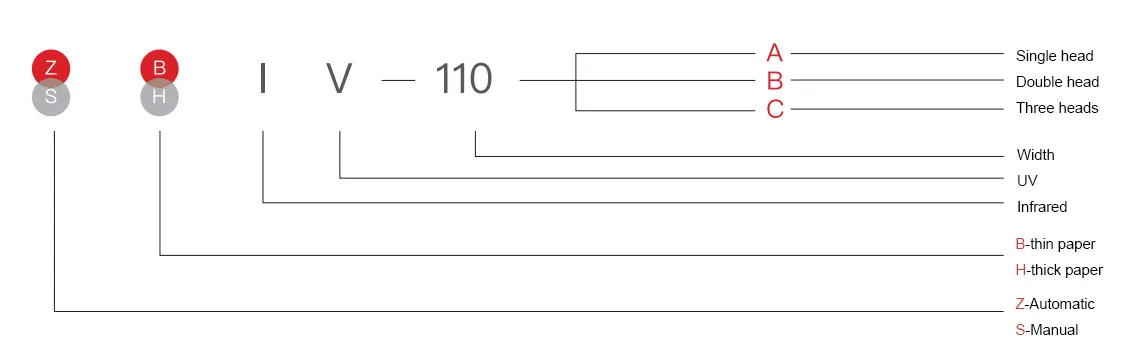

Model Breakdown

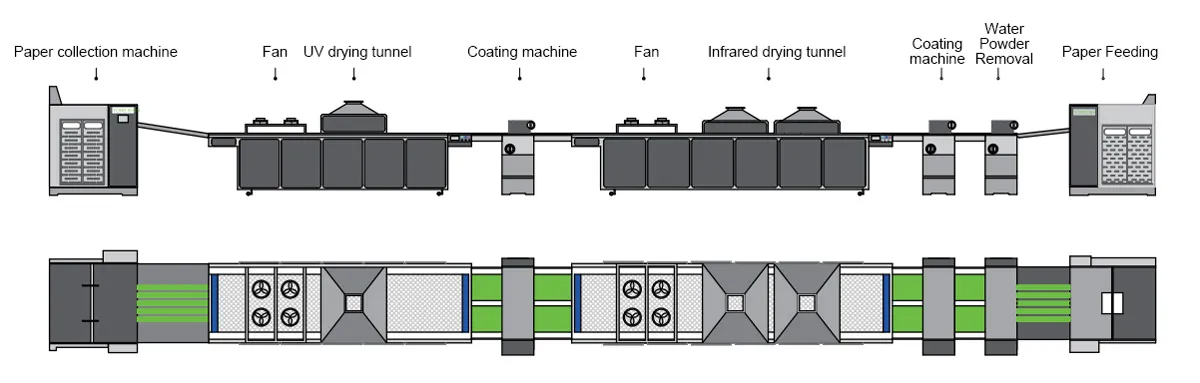

Schematic Diagram

Parameters

Model/thick paper	ZHIV-110C	ZHIV-130C	ZHIV-150C
Model/thin paper	ZBIV-110C	ZBIV-130C	ZBIV-150C
Maximum paper size	1100*1100mm	1300*1650mm	1500*1650mm
Minimum paper size	350*350mm	350*350mm	350*350mm
Paper thickness for thick paper machine	200-600g/m²	200-600g/m²	200-600g/m²
Paper thickness for thin paper machine	100-600g/m²	100-600g/m²	100-600g/m²
Mechanical speed	10-100m/min	10-100m/min	10-100m/min
External dimensions	2150023002000mm	2300025002000mm	2300027002000mm
Total power consumption	56KW	58KW	58KW

Component Introduction

Paper Feeding

Direct push paper - loading table cuts labor needs. Its robust four - feed and four - suction system ensures stable paper feeding, and it comes with a double - sheet stop feature.

Infrared Oven

Every lamp has a lampshade, which helps save electricity.

Automatic Receiving

The equipment features a three - sided paper aligning device, counting function, corrugated paper output, automatic waste discharge, deceleration during paper jams, non - stop paper change, random paper separation function, and anti - presser foot function.

Conveyor

Fixed negative pressure adsorption with slide - rail adjustment saves both time and effort.

Infrared Coating

The coating exhibits a smooth finish. The cot roll enables paper stopping, and the roll paper can be inched. The cot roll is designed for easy disassembly and assembly. There is splash - proof protection, an oil circulation system, and the rubber rollers are easy to clean.

UV Light Source

Equipped with a UV light source, it offers safety protection, achieves 30% energy savings, and features intelligent control.

UV Coating

The coating is smooth. The cot roll can stop paper, and the roll paper can be inched. The cot roll is easy to disassemble and assemble. There's splash - proof protection, an oil circulation system, and the rubber rollers are easy to clean.
