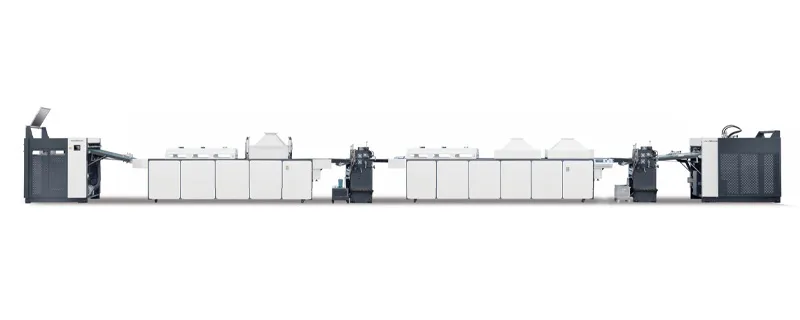

Double Heads UV Oil Varnish Coating Machine

Basic Introduction:

User - friendly and intelligent operation: Features intuitive controls for seamless handling.
High - safety design: Incorporates high - voltage protection and an external cover to ensure secure operation.
Energy - efficient: Equipped with UV intelligent power control to minimize energy consumption.

GET A INQUIRY

DOWNLOAD FILE

Description Parameters Component Introduction Recommended Products

Description

The Double Heads UV Oil Varnish Coating Machine is a high - performance device. Its two UV heads enhance coating efficiency, enabling both simultaneous and sequential coating to suit different production demands.
It applies a smooth and even UV oil varnish layer, improving product appearance and providing protection against scratches and environmental factors. The UV curing process is fast, shortening production time.
With user - friendly controls for parameter adjustment and built - in safety features, it's an ideal choice for industries like printing, packaging, and manufacturing that require efficient and quality coating solutions.

Schematic Diagram

Model Breakdown

Parameters

Model/thick paper	ZHIV-110C	ZHIV-130C	ZHIV-150C
Model/thin paper	ZBIV-110C	ZBIV-130C	ZBIV-150C
Maximum paper size	1100*1100mm	1300*1650mm	1500*1650mm
Minimum paper size	350*350mm	350*350mm	350*350mm
Paper thickness for thick paper machine	200-600g/m²	200-600g/m²	200-600g/m²
Paper thickness for thin paper machine	100-600g/m²	100-600g/m²	100-600g/m²
Mechanical speed	10-100m/min	10-100m/min	10-100m/min
External dimensions	2150023002000mm	2300025002000mm	2300027002000mm
Total power consumption	56KW	58KW	58KW

Component Introduction

Paper Feeding

The direct - push paper - loading table simplifies operations, reducing labor requirements. Its robust four - feed and four - suction mechanism ensures stable paper feeding. Additionally, a double - sheet stop device is integrated to prevent malfunctions.

Water Powder Removal

It efficiently clears away the dust present on the paper surface, boosts the film's brightness, and reduces the amount of glue needed.

Infrared Oven

Each lamp is equipped with a lampshade to save electricity.

Automatic Receiving

The machine is equipped with a three - sided paper aligning device and a counting function. It can output corrugated paper, and has the capabilities of automatic waste discharge, decelerating during paper jams, non - stop paper change, random paper separation, and an anti - presser foot function.

UV Light Source

quipped with a UV light source, it offers safety protection, achieves 30% energy savings, and features intelligent control functions.

UV Oven

A cooling air extraction device for the UV lamp shade safeguards the lamp's lifespan by preventing overheating.

Infrared Coating

The coating is smooth, the cot roll paper is stopped, the roll paper is moved inching, and the cot roll is easy to disassemble and assemble. Splash-proof protection, oil circu-lation system, and easy cleaning of rubber rollers.

Conveyor

Fixed negative pressure adsorption paired with slide rail adjustment enables time - and - effort - saving operation.

UV Coating

The coating is smooth, the cot roll paper is stopped, the roll paper is moved inching, and the cot roll is easy to disassemble and assemble. Splash-proof protection, oil circu-ation system, and easy cleaning of rubber rollers.
