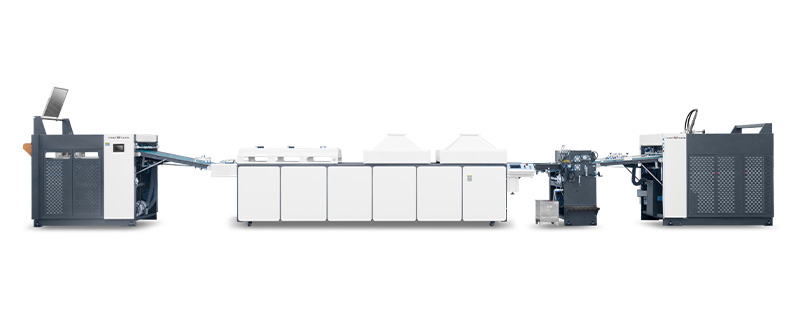

Single Head Automatic UV Coating Machine

Basic Introduction:

User - friendly and Intelligent: Features intuitive controls for easy operation.
Energy - efficient: Employs UV intelligent power control for energy savings.
High - safety: Includes high - voltage protection and an external cover for safety.

GET A INQUIRY

DOWNLOAD FILE

Description Parameters Component Introduction Recommended Products

Description

The Single Head Automatic UV Coating Machine innovatively handles paper product oil (UV) glazing for all paper thicknesses.
Products processed by it have enhanced surface gloss, moisture and wear resistance, suiting applications like business cards and packaging cartons.
In the competitive printing market, this machine transforms print quality, streamlines surface treatment, and ensures high - standard products. It helps printing houses satisfy clients, build a good reputation, and boost business.

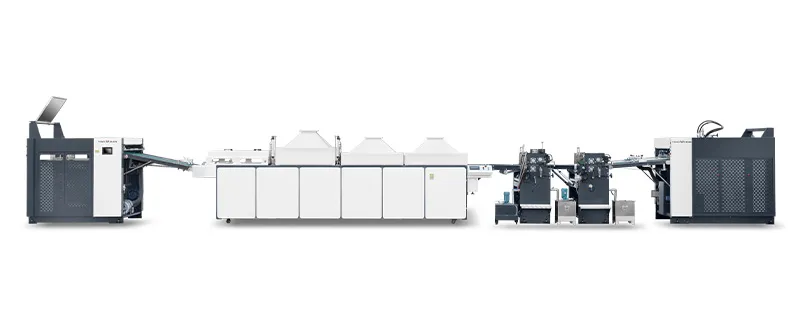

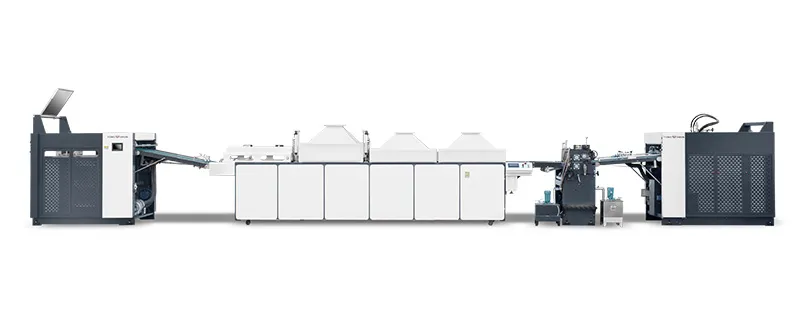

Model Breakdown

Schematic Diagram

Parameters

Model/thick paper	ZHIV-110C	ZHIV-130C	ZHIV-150C
Model/thin paper	ZBIV-110C	ZBIV-130C	ZBIV-150C
Maximum paper size	1100*1100mm	1300*1650mm	1500*1650mm
Minimum paper size	350*350mm	350*350mm	350*350mm
Paper thickness for thick paper machine	200-600g/m²	200-600g/m²	200-600g/m²
Paper thickness for thin paper machine	100-600g/m²	100-600g/m²	100-600g/m²
Mechanical speed	10-100m/min	10-100m/min	10-100m/min
External dimensions	2150023002000mm	2300025002000mm	2300027002000mm
Total power consumption	56KW	58KW	58KW

Component Introduction

UV Light Source

UV light source incorporated with safety protection features, enabling 30% energy savings and intelligent control capabilities.

Paper Feeding

The direct - push paper - loading table slashes labor. Its four - feed/four - suction system ensures steady paper feeding, and the double - sheet stop device averts double - sheet problems, boosting reliability.

Water Powder Removal

Effectively removes dust from the paper surface, enhances the film's brightness, and reduces glue usag.

Automatic Receiving

Three-sided paper aligning device, counting function, corrugated paper output, automatic waste discharge, paper jam deceleration, non-stop paper change, random paper separation function, and anti-presser foot function.

Infrared Coating

Smooth coating, automatic stop and inching of cot roll paper, easy disassembly and assembly of the cot roll. Splash-proof protection, oil circulation system, and easy cleaning of rubber rollers.

Infrared Oven

Each lamp is equipped with a lampshade to save electricity.

UV Coating

Smooth coating, automatic stop and inching of cot roll paper, easy disassembly and assembly of cot roll. Splash-proof protection, oil circulation system, and easy cleaning of rubber rollers.
